Semi-automatic Dished End Polishing Machine 3500x1600x3050mm 2500 kg with 8-12m2 per Hour Efficiency

  • Semi-automatic Dished End Polishing Machine 3500x1600x3050mm 2500 kg with 8-12m2 per Hour Efficiency
  • Semi-automatic Dished End Polishing Machine 3500x1600x3050mm 2500 kg with 8-12m2 per Hour Efficiency
  • Semi-automatic Dished End Polishing Machine 3500x1600x3050mm 2500 kg with 8-12m2 per Hour Efficiency
  • Semi-automatic Dished End Polishing Machine 3500x1600x3050mm 2500 kg with 8-12m2 per Hour Efficiency
  • Semi-automatic Dished End Polishing Machine 3500x1600x3050mm 2500 kg with 8-12m2 per Hour Efficiency
  • Semi-automatic Dished End Polishing Machine 3500x1600x3050mm 2500 kg with 8-12m2 per Hour Efficiency
Miejsce pochodzenia Chiny
Nazwa handlowa Trancar Industries
Orzecznictwo CE/ISO
Numer modelu TCM-D
Minimalne zamówienie 1 zestaw
Cena USD 9000-5000 Dollar per set
Szczegóły pakowania Pudełko ze sklejki / pudełka kartonowe na zamówienie
Czas dostawy 35 dni roboczych
Zasady płatności L/C, D/A, D/P, T/T, ZARZĄDENIE WESTOLA
Możliwość Supply 20 zestawów miesięcznie

Skontaktuj się ze mną o darmowe próbki i kupony.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

Jeśli masz jakiekolwiek obawy, oferujemy 24-godzinną pomoc online.

x
Szczegóły Produktu
Nazwa produktu półautomatyczna maszyna do polerowania głowicy talerza Wymiar 3500x1600x3050mm
Waga 2500 kg Woltaż 380 V 400 V 415 V itp. 50 Hz/60 Hz
Opcja koloru Niebieski/żółty/czerwony/szary Stosowanie Czyszczenie powierzchni stalowych, usuwanie rdzy, uzyskanie powierzchni lustrzanej
Stan 100% nowy System sterowania Półautomat/CNC
Wydajność polerowania 8-12m2 na godzinę Gwarancja 18 miesięcy
Obsługa posprzedażna Wsparcie techniczne wideo/wsparcie online/inżynier za granicą Dostarczać ODM i OEM
Podkreślić

3500x1600x3050mm Dished End Polishing Machine

,

2500 kg Semi-automatic Polishing Machine

,

8-12m2 per Hour Tank Head Polishing Machine
Zostaw wiadomość
opis produktu
Semi-automatic Polishing Machine for Dish Head End
TCM-D column and boom manipulator automatic surface grinding machine is designed for steel metal tank ends, dish heads, tank caps/bottoms/cones inner and outer surface polishing and buffing.
This model is primarily used for surface polishing of stainless steel, metal, aluminum, and copper dished ends, tank heads, and cylinder heads. It can also be used for vertical tank surface grinding.
The TCM-D automatic polishing machine is suitable for various standard head polishing applications including conical head polishing, spherical head surface polishing, dish head polishing, special heads polishing, and stainless steel oval head inside/outside surface grinding. It's widely used in pharmaceutical, medical, food & beverage, water purification, pressure vessel, cosmetic, wastewater treatment, semiconductor, and photovoltaic industries.

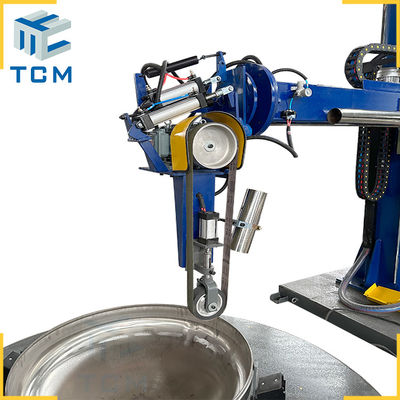

Semi-automatic Dished End Polishing Machine 3500x1600x3050mm 2500 kg with 8-12m2 per Hour Efficiency 0
Technical Specifications
Parameter Details
Available Polishing Workpiece Size Inside & outside diameter: 450~5000mm
Turntable Max Loading Capacity 1 Ton / 2 Ton /5 Ton / 10 Ton (option or custom design 15 Ton, 20 Ton)
Polishing Precision Surface roughness(Ra) ≤0.25μm
Production Efficiency 6~12 m²/hour
Total Dimension Machine: 3500×1600×3080mm
Column: 300×400×8mm
Beam: 150×200×6mm
Input Total Power 12 kw
Power Supply 380V 415V / 50Hz 60HZ / 3p or Customization
Color Grey/Green/Blue/Red/Yellow (Custom design available)
Machine Weight 2250kg
Suitable Polishing Material Abrasive sanding belts, grinding wheels (flap/cloth/emery/Nylon wheel etc)
Packaging and Delivery
  • Plywood case + PE Film + Carton protection
  • Custom packaging available based on order requirements

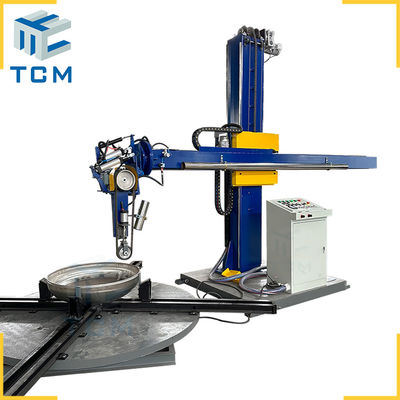

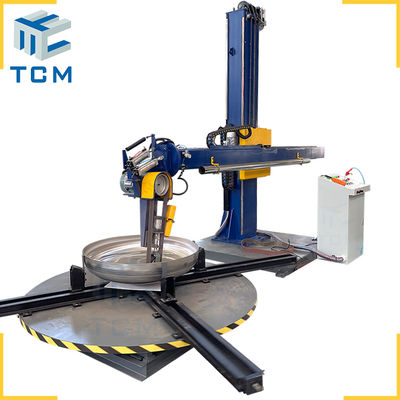

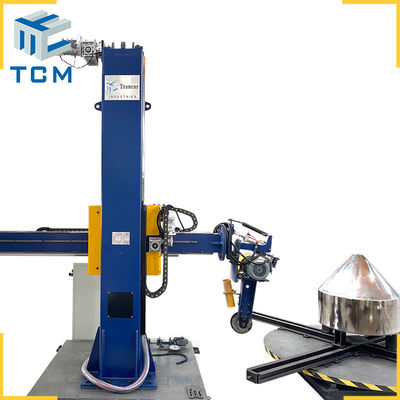

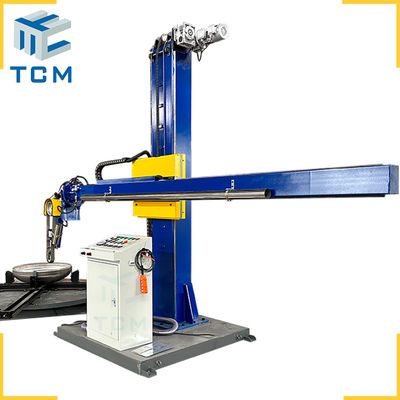

Semi-automatic Dished End Polishing Machine 3500x1600x3050mm 2500 kg with 8-12m2 per Hour Efficiency 1 Semi-automatic Dished End Polishing Machine 3500x1600x3050mm 2500 kg with 8-12m2 per Hour Efficiency 2 Semi-automatic Dished End Polishing Machine 3500x1600x3050mm 2500 kg with 8-12m2 per Hour Efficiency 3 Semi-automatic Dished End Polishing Machine 3500x1600x3050mm 2500 kg with 8-12m2 per Hour Efficiency 4
Trancar Automatic Polishing Machine in Client's Workshop
Semi-automatic Dished End Polishing Machine 3500x1600x3050mm 2500 kg with 8-12m2 per Hour Efficiency 5
Contact Us
For any other queries about our polishing machines, please feel free to contact us. We will respond within 12 hours.
Semi-automatic Dished End Polishing Machine 3500x1600x3050mm 2500 kg with 8-12m2 per Hour Efficiency 6
